High dc Permanent magnet motor











Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: CE, UL
  • Type: Micro Motor
  • Torque: 1.37Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1750rpm
  • Continuous Current(A): 3.70A
  • Output Power: 1/3Hp
  • Voltage(V): 90V
  • Efficiency: IE 2
  • color: blue magnet motor
  • N.W: 7.5kg
  • carton size: 31*19*20.5cm
  • type: brush magnet motor

Specifications

1.magnet motor
2.UL,CE
3.90v,1/3Hp,1750rpm,Dia:113mm
4.High efficiency, easy adjust speed,low price
5.Special in export

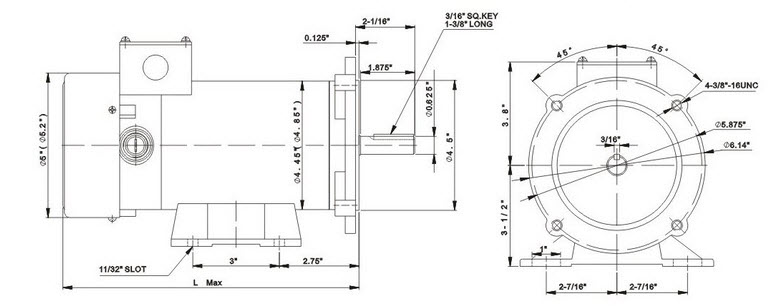

◊ Drawing

◊ Specification

◊ Model Description

113

ZYV

90

-

1/3

-

1750

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:90-90V.DC input

4.Power:1/3-rated output power of 1/3HP

5.Speed:1750-Rated speed 1750rpm
